Acculogic MDA
Superior Performance and Exceptionally Cost Effective
Whether you're choosing from our stand-alone manually loaded tester all the way to our fully automatic In-line test system, Acculogic has the solution for you!

Acculogic's Scorpion family of In-circuit fixture-based testers were created with one underlining theme in mind: “Cost-effective Testing”.

To achieve this objective, we designed a range of feature-rich testers all of which offer:
? Advanced automatic programgeneration software
? Automatic CAD translation tools
? High performance analog measurement system
? Comprehensive passive component and discrete analog device test
? Patented vectorless opens test
? Unique and convenient Fixture exchange system
? Customizable Fixture Receiver to protect your fixture investments.

SCORPION FiS 640
The FiS 640 was designed to be a cost efficient, modular and expandable tester. This system can be configured with up to 1,024 pins.The tester’s operating system is MS Windows and the FiS 640 can be easily networked for centralized program storage or data collection.

Key Features:
? Up to 1,024 test pins
? Single or double sided testing – single fixture
? Complete fixture change in less than one minute
? Maximum board size 350 mm x 400 mm
? Extended fault detection
? Built-in network analyzer
? Automatic program generation
? Functional testing
? Full software compatibility to Flying Scorpion
? Small Footprint – Length: 1050mm, Width: 1050mm
? Utilize your existing investment in fixtures

SCORPION iCT7000
Whether you’re choosing from our stand-alone manually loaded tester all the way through to our fully automatic In-line tester system, Acculogic has the system for you! Acculogic’s Scorpion family of In-circuit fixture-based testers were created with one underlining theme in mind: Cost-effective Testing.

Key Features:
? An expandable pin count to 8,192 pins. Larger configurations require a more spacious rack style configuration
? Single or double sided testing – single fixture
? Complete fixture change in less than one minute
? Maximum board size 350 mm x 400 mm
? Extended fault detection
? Built-in network analyzer
? Automatic program generation
? Functional testing
? Full software compatibility to Flying Scorpion
? Utilize your existing investment in fixtures
? The readiness for the integration of up to 4 external, high performance, programmable power supplies

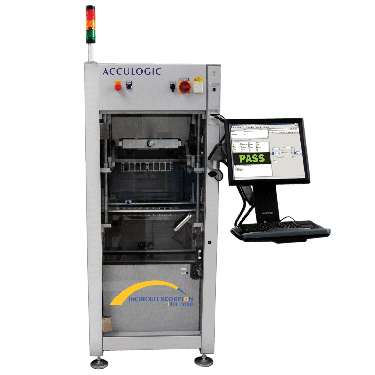

iTH 7000 In-Line Test Handler
Acculogic’s iTH 7000 system is a fully automated in-circuit test system for high volume production with the added advantage of a very fast change over time for different assemblies – less than one minute, including fixture change.

The iTH 7000 is ideally suited for the modern flexible manufacturing line requiring a fast product change over. Upper and lower fixtures are a single unified fixture with coding for proper conveyor width and automatic call up of the test program.

Key Features:
? Up to 1,700 test pins
? Single or double sided testing single fixture
? Fast fixture change over
? Cycle time of 5 seconds plus test time
? Maximum board size 400 mm x 400 mm
? Extended fault detection
? Function testing
? Full software compatibility to Flying Scorpion
? Small Footprint: 760mm L x 900mm W x 1800mm H
? SMEMA compliant conveyor
? Automatic program generation
